| ORDER CODE | TIP | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) | FORMING FORCE KG | LENGTH (MM) | NOTES |
|---|---|---|---|---|---|---|
| PNG 5000 D |  |
Max Ø 0.8mm | 20 awg | 3 | 150mm | C-shape forming pliers. ESD-safe handles. |
| PNR 30 D | |
Max Ø 0.8mm | 20 awg | 3 | 145mm | C-shape forming pliers. ESD-safe handles. |
| PNR 5000 D | |
Max cut Ø 0.8mm | 20 awg | 3 | 150mm | C-shape forming and cutting pliers. ESD-safe handles. |
| PNR 5010 D | |
Max cut Ø 0.8mm | 20 awg | 6 | 150mm | It cuts and forms the leads in a double opposite C-shape in one step. ESD-safe handles. |
| PTR 30 C/5 D | |
Max Ø 0.8mm | 20 awg | 3 | 150mm | It forms a C-shape bend in the leads and cuts the residual part at 4 mm. ESD-safe handles. |
| PTR 30 C D | |
Max cut Ø 0.8mm | 20 awg | 3 | 150mm | It forms a C-shape bend in the leads and cuts the residual part at 3 mm. ESD-safe handles. |
| ORDER CODE | TIP | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) | FORMING FORCE KG |
|---|

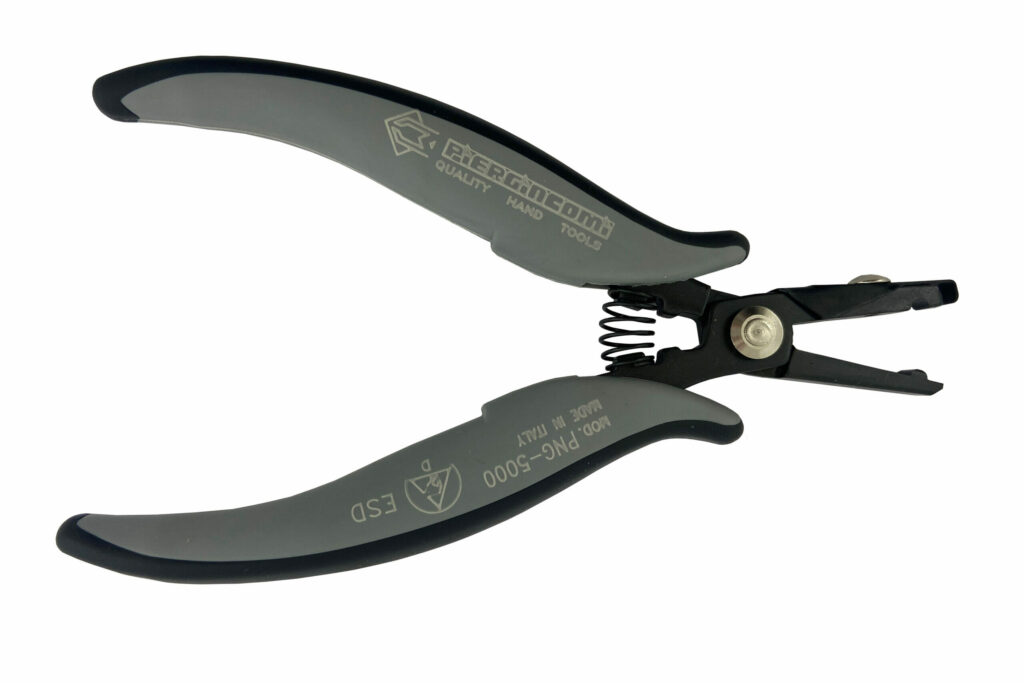

PNG 5000 D
Max Ø 0.8mm
20 awg
3
PNG 5000 D
Max Ø 0.8mm
20 awg
3

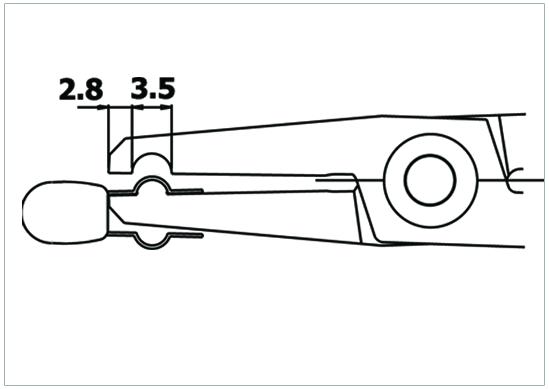

Special C-shape lead forming tool. Special radius that allows forming the leads without imposing stress. Steel thickness 5mm. Tool length 150mm. ESD-safe handles. Grip model St.

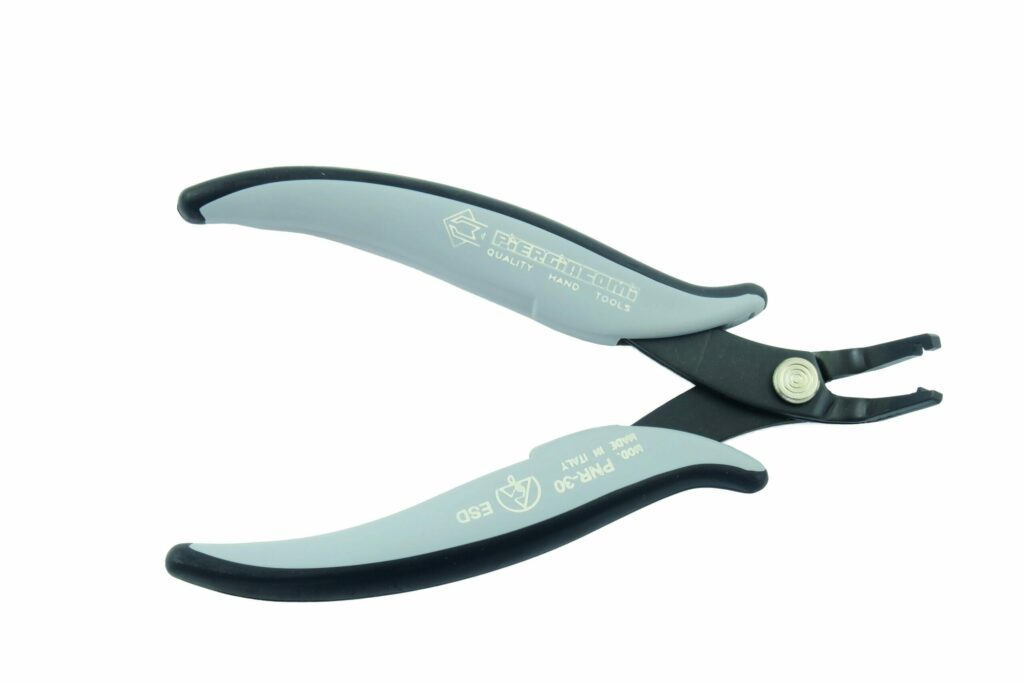

PNR 30 D
Max Ø 0.8mm
20 awg
3
PNR 30 D
Max Ø 0.8mm
20 awg
3

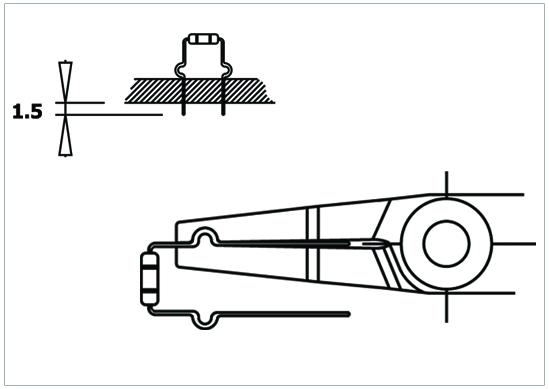

Special C-shape lead forming tool. Tips bent at 45°. Steel thickness 3 mm. Tool length 145 mm. ESD-safe handles. Grip model St.

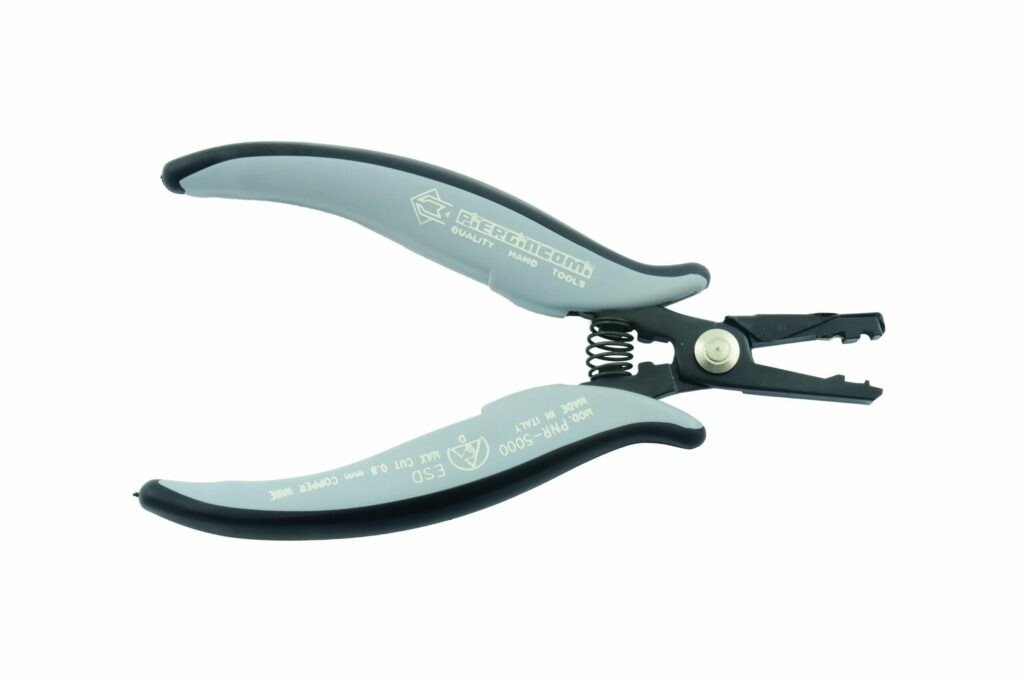

PNR 5000 D
Max cut Ø 0.8mm
20 awg
3
PNR 5000 D
Max cut Ø 0.8mm
20 awg
3

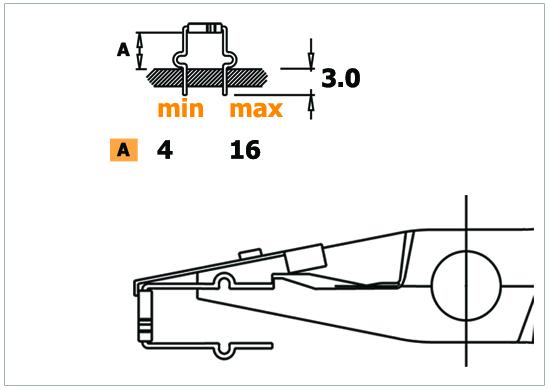

A special tool that cuts and forms the leads in one step. The cutting length can be adjusted using the adjustable stop (min. 4 – max. 16). Steel thickness 5 mm. Tool length 150 mm. ESD-safe handles. Grip model St.

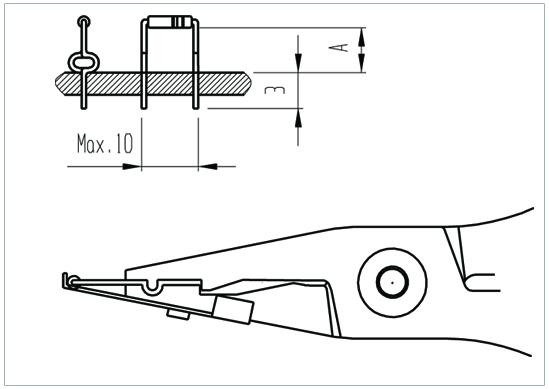

PNR 5010 D
Max cut Ø 0.8mm
20 awg
6
PNR 5010 D
Max cut Ø 0.8mm
20 awg
6

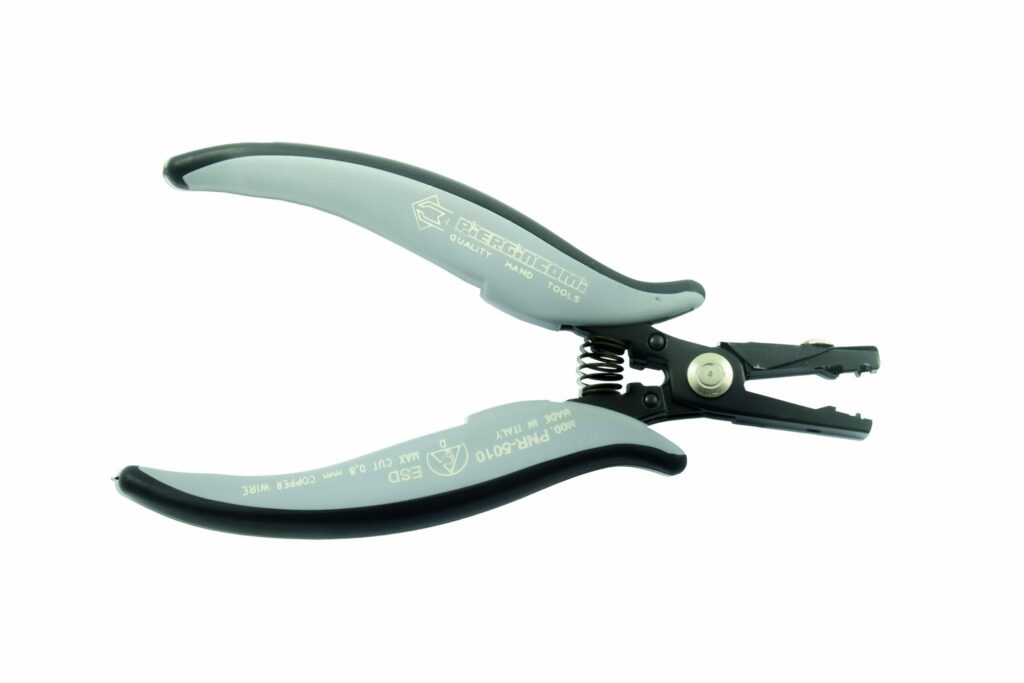

Forming and cutting pliers that can be used to create a C-shaped bend into both components leads in one step. The cutting length can be adjusted using the adjustable stop (min. 4 – max. 16). Steel thickness 10 mm. Tool length 150 mm. ESD-safe handles. Grip model St

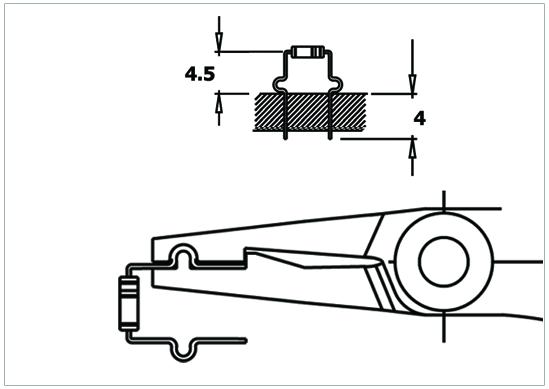

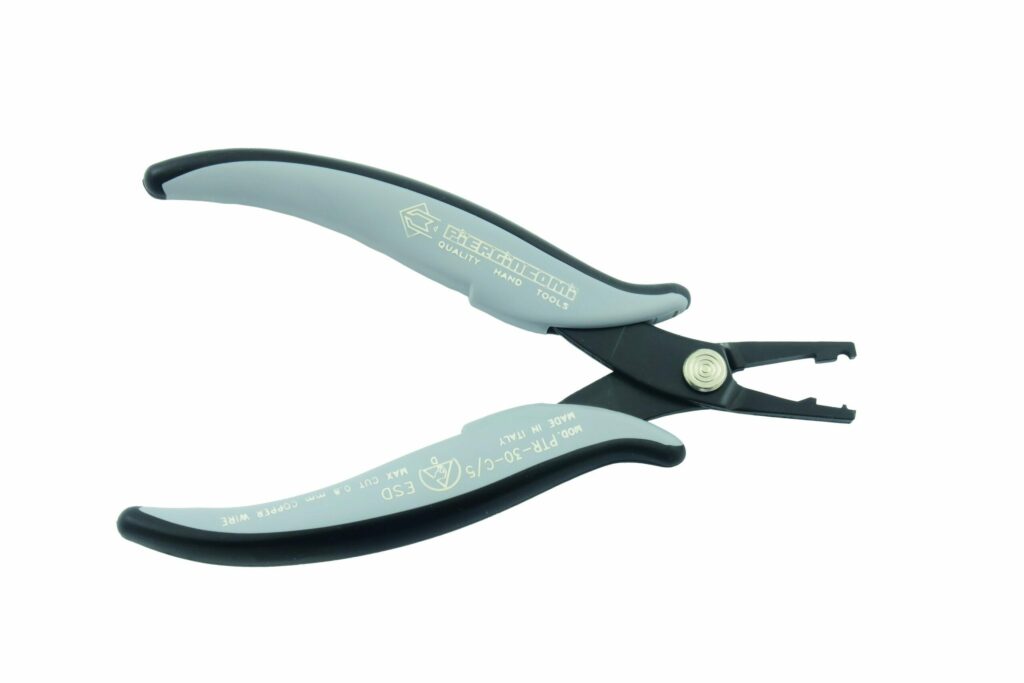

PTR 30 C/5 D
Max Ø 0.8mm
20 awg
3
PTR 30 C/5 D
Max Ø 0.8mm
20 awg
3
Pliers that form the component leads in a C-shape and cut off the residual part. Residual lead length 4 mm. Steel thickness 3 mm. Tool length 150 mm. ESD-safe handles. Grip model St.

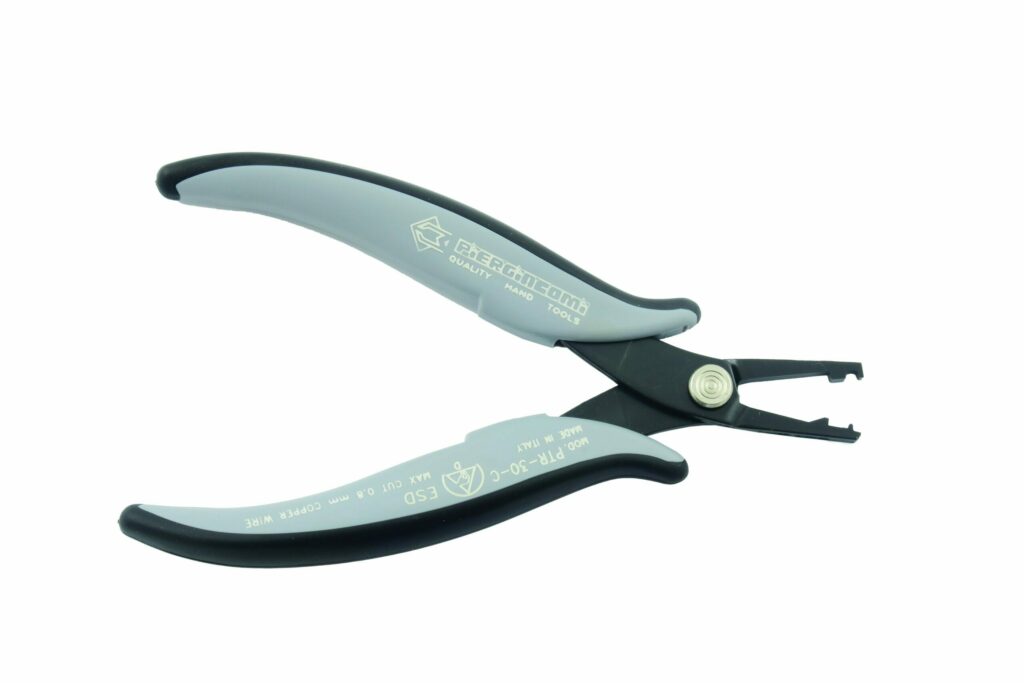

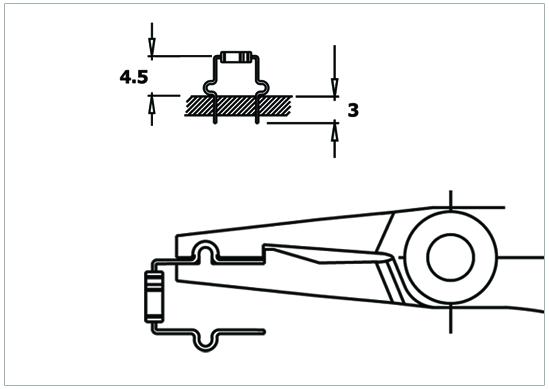

PTR 30 C D
Max cut Ø 0.8mm
20 awg
3
PTR 30 C D
Max cut Ø 0.8mm
20 awg
3
Pliers that form the component leads in a C-shape and cut off the residual part. Residual lead length 3 mm. Steel thickness 3 mm. Tool length 150 mm. ESD-safe handles. Grip model St.
