| ORDER CODE | TIP | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) | FORMING FORCE KG | LENGTH (MM) | NOTES |
|---|---|---|---|---|---|---|
| PPR 5000D |  |
Max Ø 0.6÷0.8mm | 22-20 awg | 3 | 150mm | U-shape forming pliers. ESD-safe handles. |
| PPR 5001D | |
Max Ø 0.6÷0.8mm | 22-20 awg | 3 | 150mm | U-shape forming pliers. ESD-safe handles. |
| PPR 5002D | |
Max Ø 0.6÷0.8mm | 22-20 awg | 3 | 150mm | U-shape forming pliers. ESD-safe handles. |
| PPR 5003D | |
Max Ø 0.6÷0.8mm | 22-20 awg | 3 | 150mm | U-shape forming pliers. ESD-safe handles. |
| ORDER CODE | TIP | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) | FORMING FORCE KG |
|---|

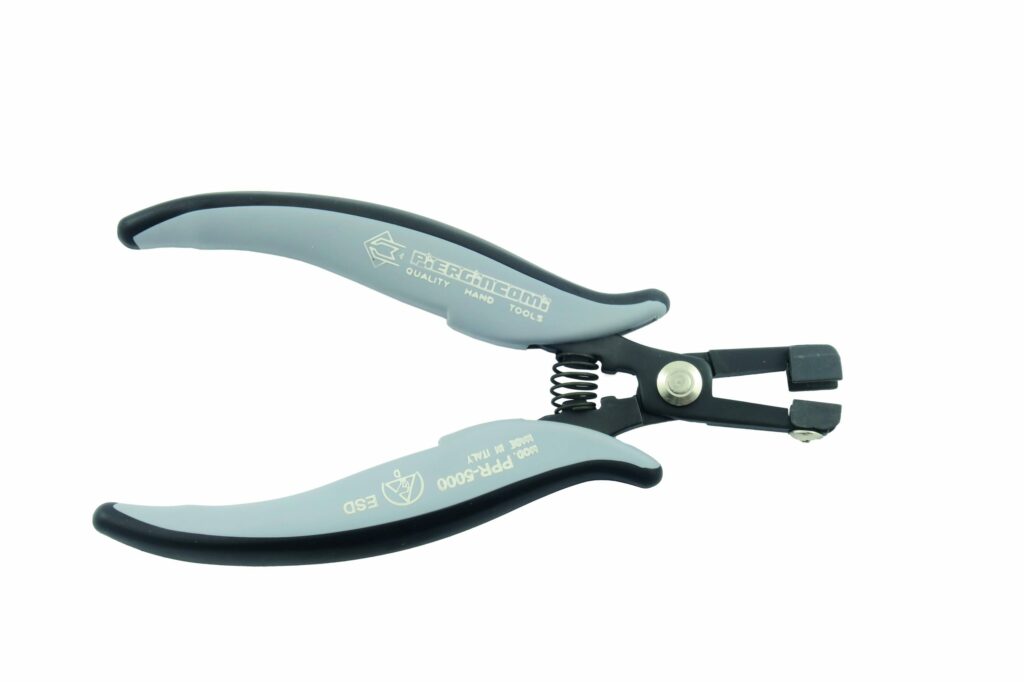

PPR 5000D
Max Ø 0.6÷0.8mm
22-20 awg
3
PPR 5000D
Max Ø 0.6÷0.8mm
22-20 awg
3

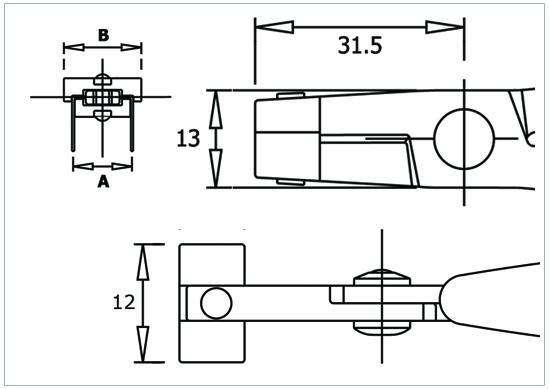

It forms the component lead in a « U » shape.
Dimensions: A = 7.62 mm ; B = 12 mm
Steel thickness 5mm. ESD-safe handles. Grip model St.

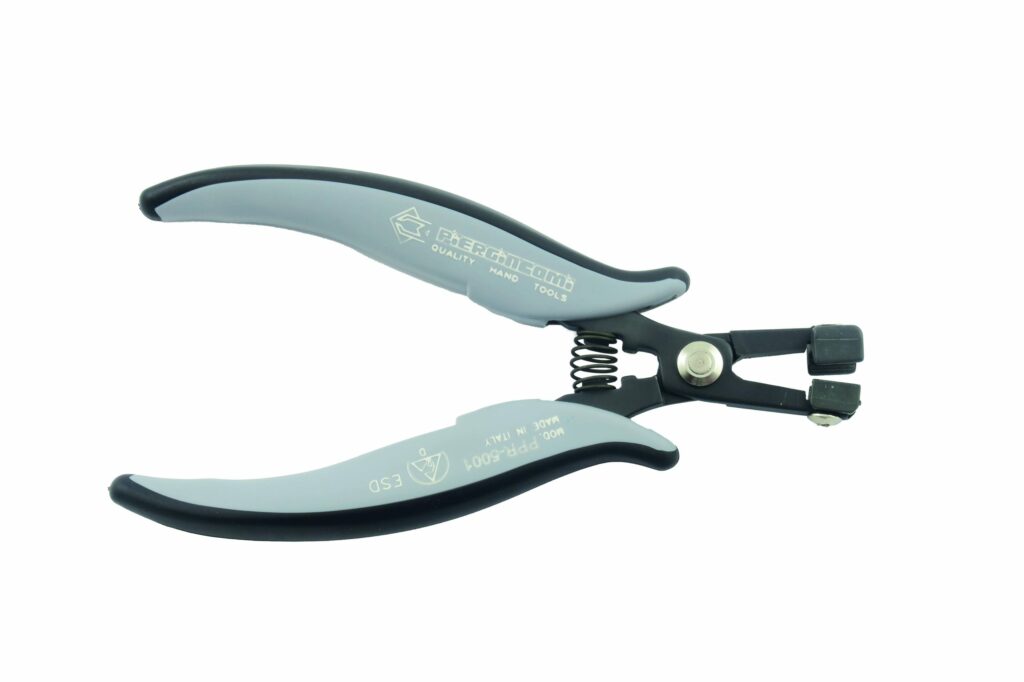

PPR 5001D
Max Ø 0.6÷0.8mm
22-20 awg
3
PPR 5001D
Max Ø 0.6÷0.8mm
22-20 awg
3

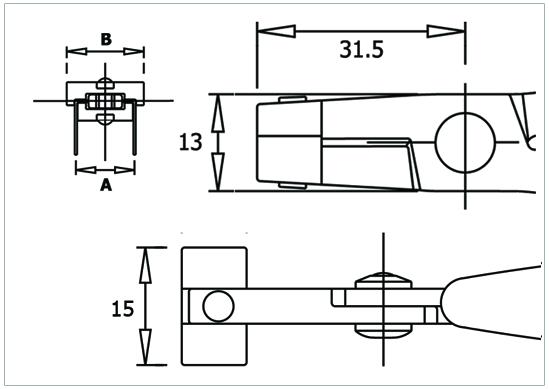

It forms the component lead in a « U » shape.
Dimensions: A = 10.16 mm ; B = 15 mm
Steel thickness 5mm. ESD-safe handles. Grip model St.

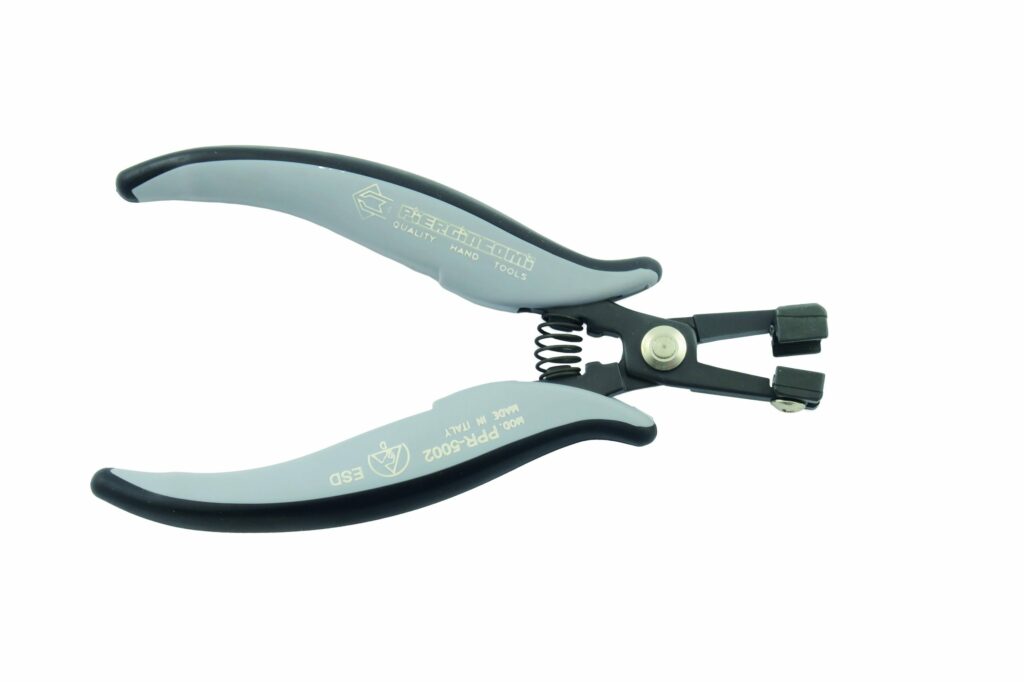

PPR 5002D
Max Ø 0.6÷0.8mm
22-20 awg
3
PPR 5002D
Max Ø 0.6÷0.8mm
22-20 awg
3
It forms the component lead in a « U » shape.
Dimensions: A = 12.70 mm ; B = 18 mm
Steel thickness 5mm. ESD-safe handles. Grip model St.

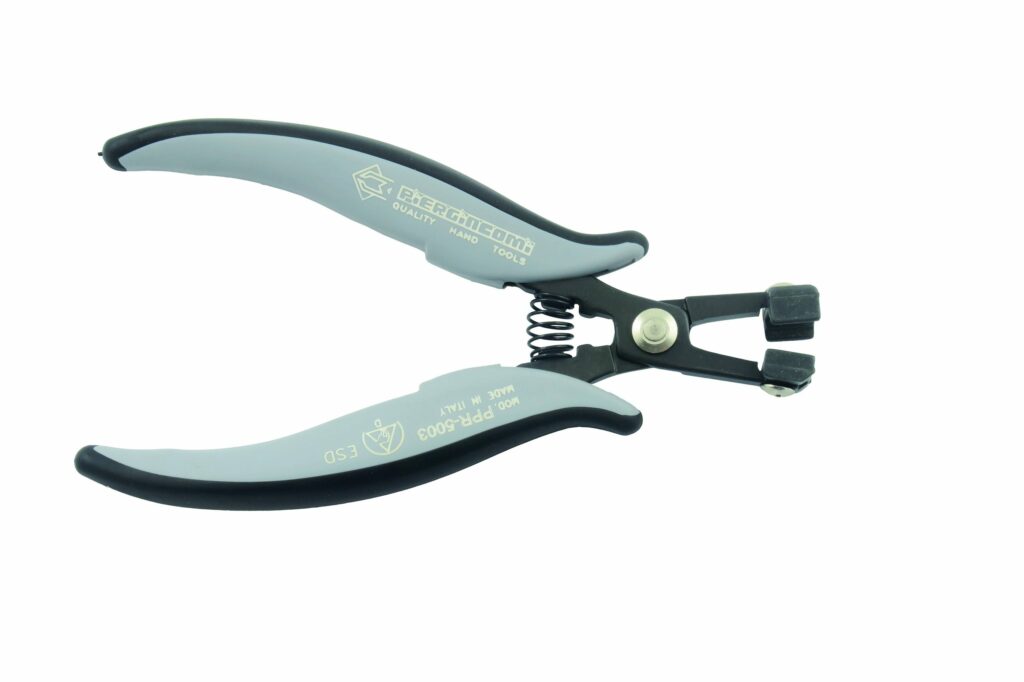

PPR 5003D
Max Ø 0.6÷0.8mm
22-20 awg
3
PPR 5003D
Max Ø 0.6÷0.8mm
22-20 awg
3

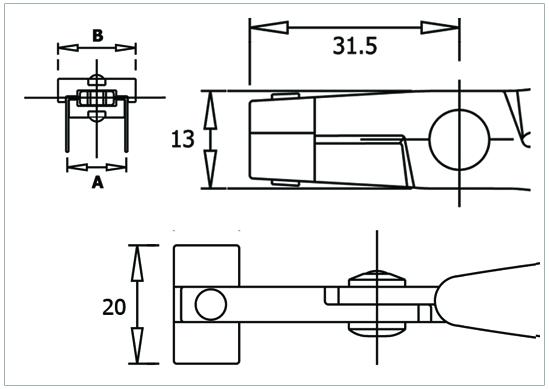

It forms the component lead in a « U » shape.
Dimensions: A = 15.24 mm ; B = 20 mm
Steel thickness 5mm. ESD-safe handles. Grip model St.
