| ORDER CODE | TIP | ESD ORDER CODE | LENGTH (MM) | CUTTING FORCE (KG) | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) |
|---|---|---|---|---|---|---|
| TR 25 B |  | TR 25 B D | 138mm | 5 | Ø 1.02mm | 18 awg |
| TR 30 B | | TR 30 B D | 138mm | 5.5 | Ø 1.02mm | 18 awg |
| TR 5000 B | | TR 5000 B D | 138mm | 12 | Ø 1.63mm | 14 awg |
| TR 5000 PG | | TR 5000 PG D | 138mm | 5 | Ø 1.02mm | 18 awg |
| TRR 5000 B | | TRR 5000 B D | 150mm | 15 | Ø 2.05mm | 12 awg |
| TRR 58 B | | TRR 58 B D | 160mm | 15 | Ø 2.05mm | 12 awg |
| ORDER CODE | TIP | HEAD | CUTTING FORCE (KG) | COPPER WIRE (⌀ MM) | COPPER WIRE (AWG) |
|---|

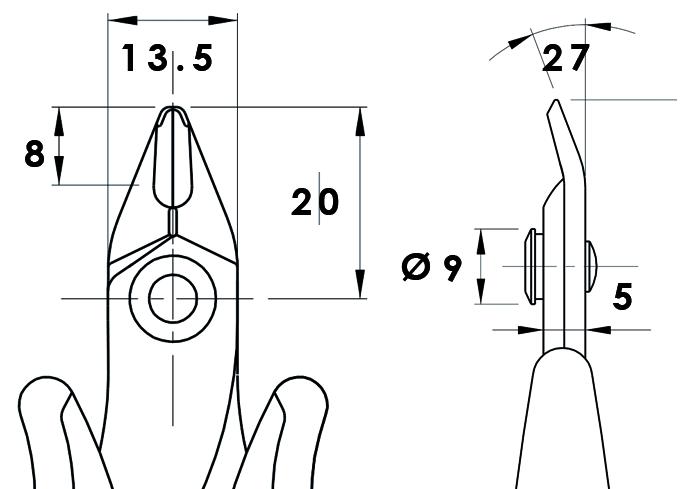

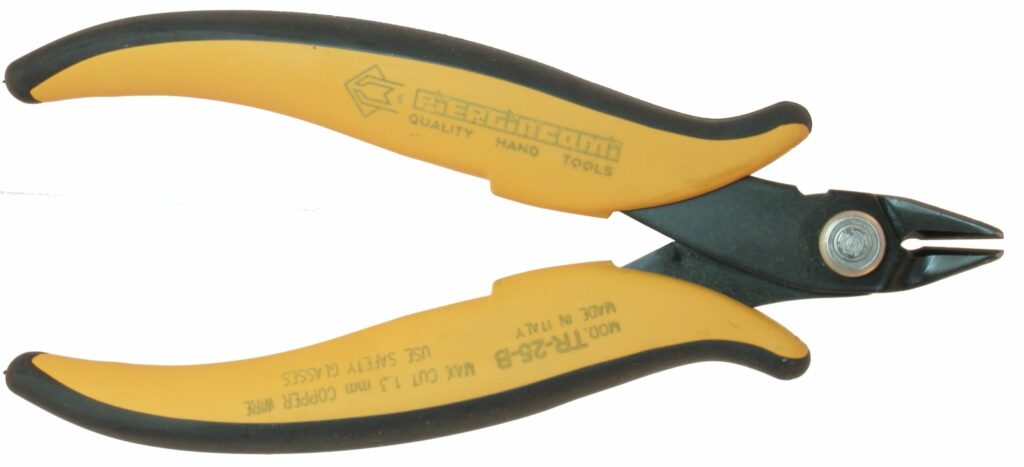

TR 25 B
Medium
5
Ø 1.02mm
18 awg
TR 25 B
Medium
5
Ø 1.02mm
18 awg
Flush cutter with convex cutting edge, for well-finished cuts. Lightweight and easy to handle, with convex cutting edges for well-finished cuts.
Suitable for plastics. Steel thickness 2.5 mm. Tool length 138 mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 25 B D)

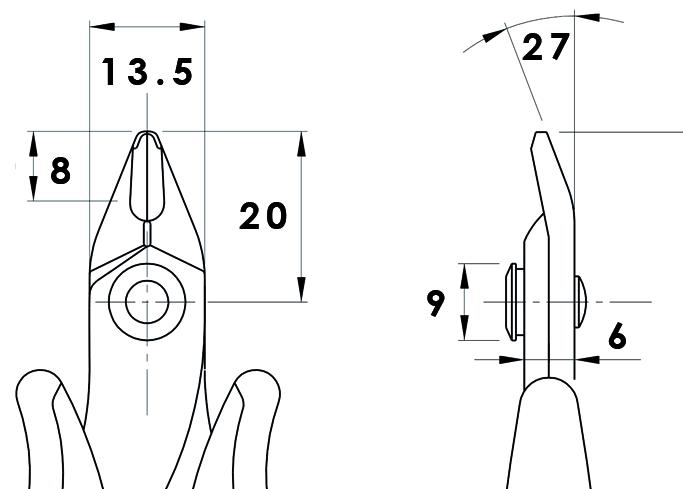

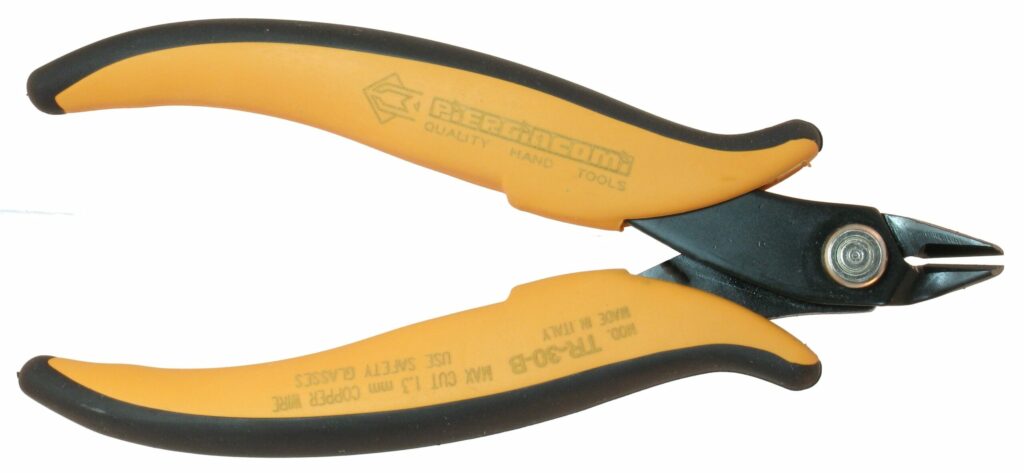

TR 30 B
Medium
5.5
Ø 1.02mm
18 awg
TR 30 B
Medium
5.5
Ø 1.02mm
18 awg
Flush cutter with convex cutting edge, for well-finished cuts. Lightweight and easy to handle, with convex cutting edges for well-finished cuts.
Suitable for plastics. Steel thickness 3 mm. Tool length 138 mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 30 B D)

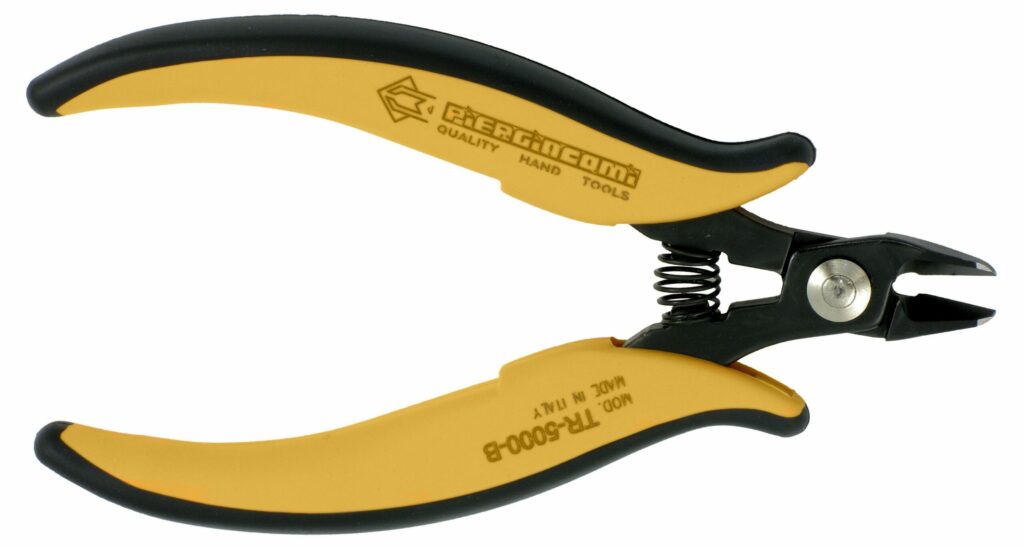

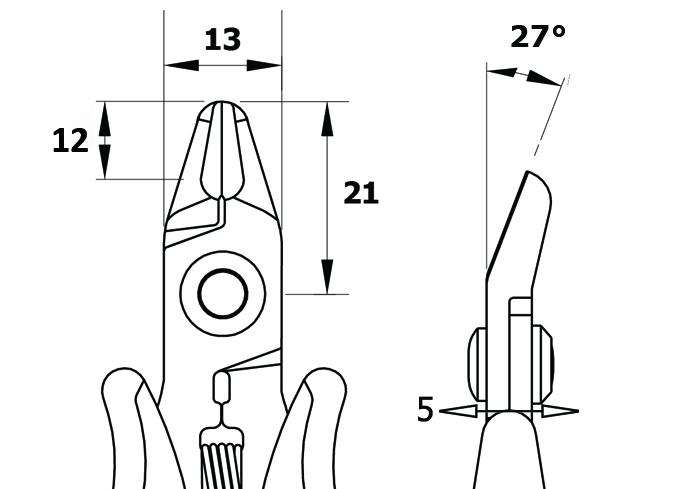

TR 5000 B
Medium
12
Ø 1.63mm
14 awg
TR 5000 B
Medium
12
Ø 1.63mm
14 awg
Strong tool with convex cutting edges for a flush finished cut.
Suitable for finishes in the plastic field. Steel thickness 5mm. Tool length 138mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 5000 B D)

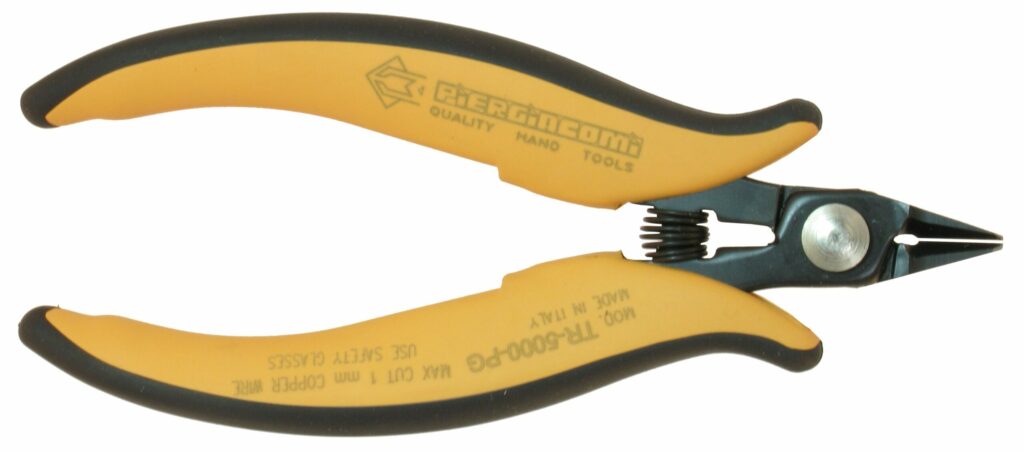

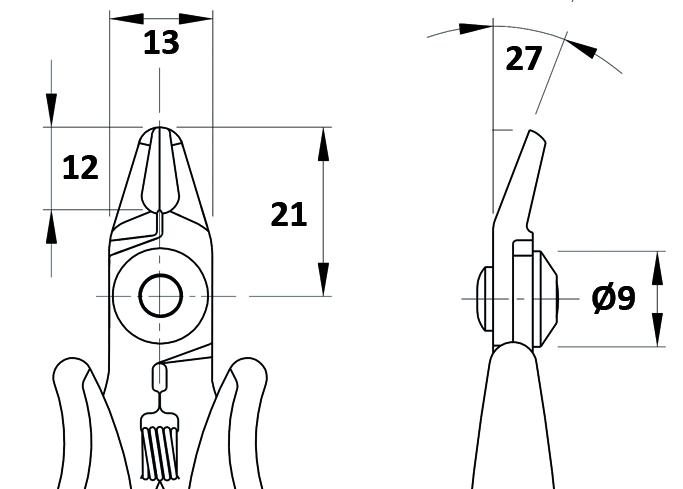

TR 5000 PG
Medium
5
Ø 1.02mm
18 awg
TR 5000 PG
Medium
5
Ø 1.02mm
18 awg
Strong tapered head flush cutter, with well-finished cutting edges.
Suitable for plastics. Steel thickness 5mm. Tool length 138mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 5000 PG D)

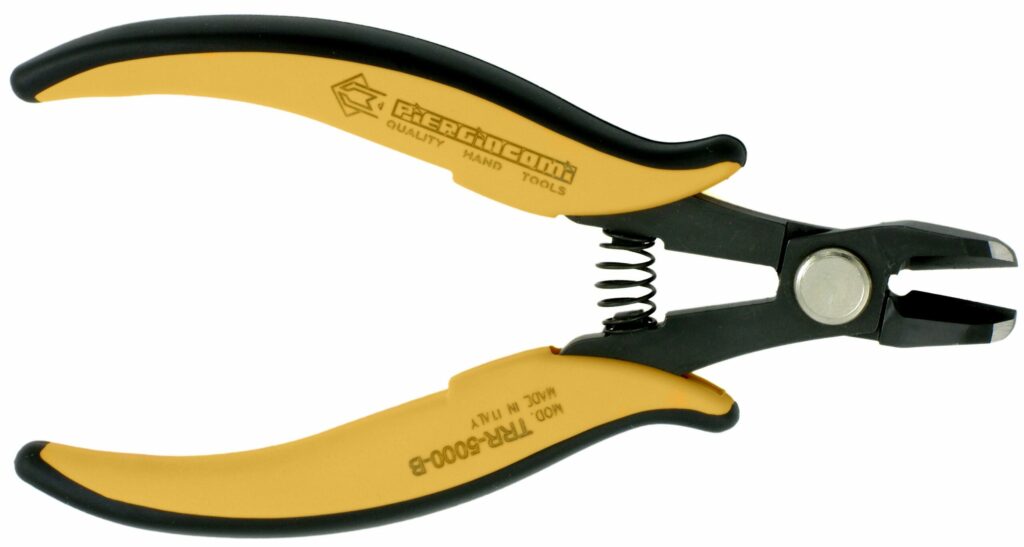

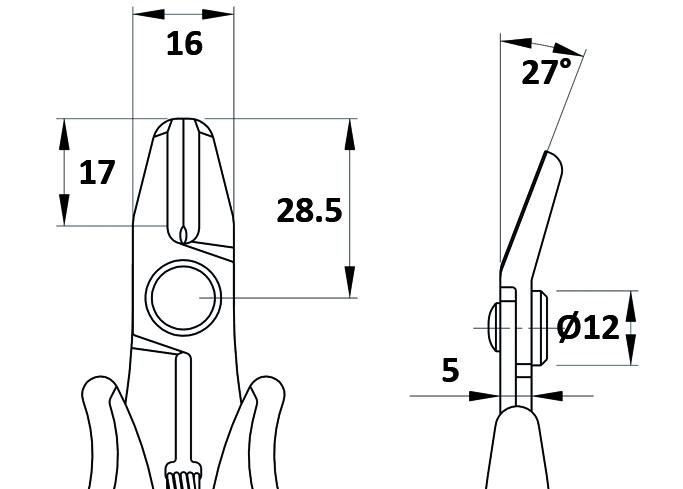

TRR 5000 B
Medium
15
Ø 2.05mm
12 awg
TRR 5000 B
Medium
15
Ø 2.05mm
12 awg
Strong tapered head flush cutter, with well-finished cutting edges.
Suitable for plastics. Steel thickness 5mm. Tool length 138mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 5000 PG D)

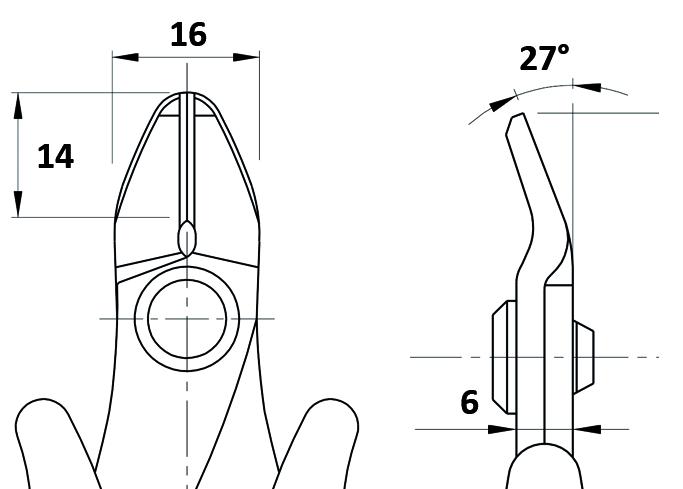

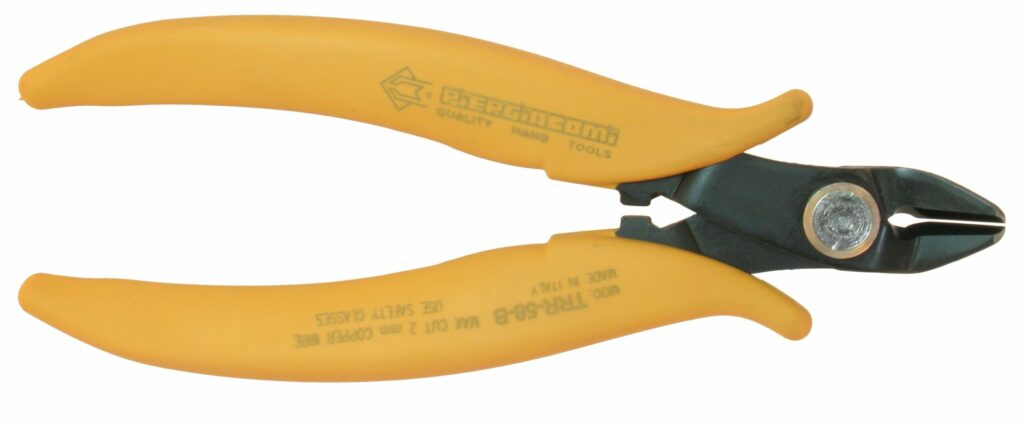

TRR 58 B
Maxi
15
Ø 2.05mm
12 awg
TRR 58 B
Maxi
15
Ø 2.05mm
12 awg
Strong flush cutter. The rounded surface of the cutting edges allows for a finished cut. Steel thickness 3mm. Tool length 160mm. Grip model B.
Also available in the following version:
– with ESD-safe handles in grey/black (code TRR 58 B D)
